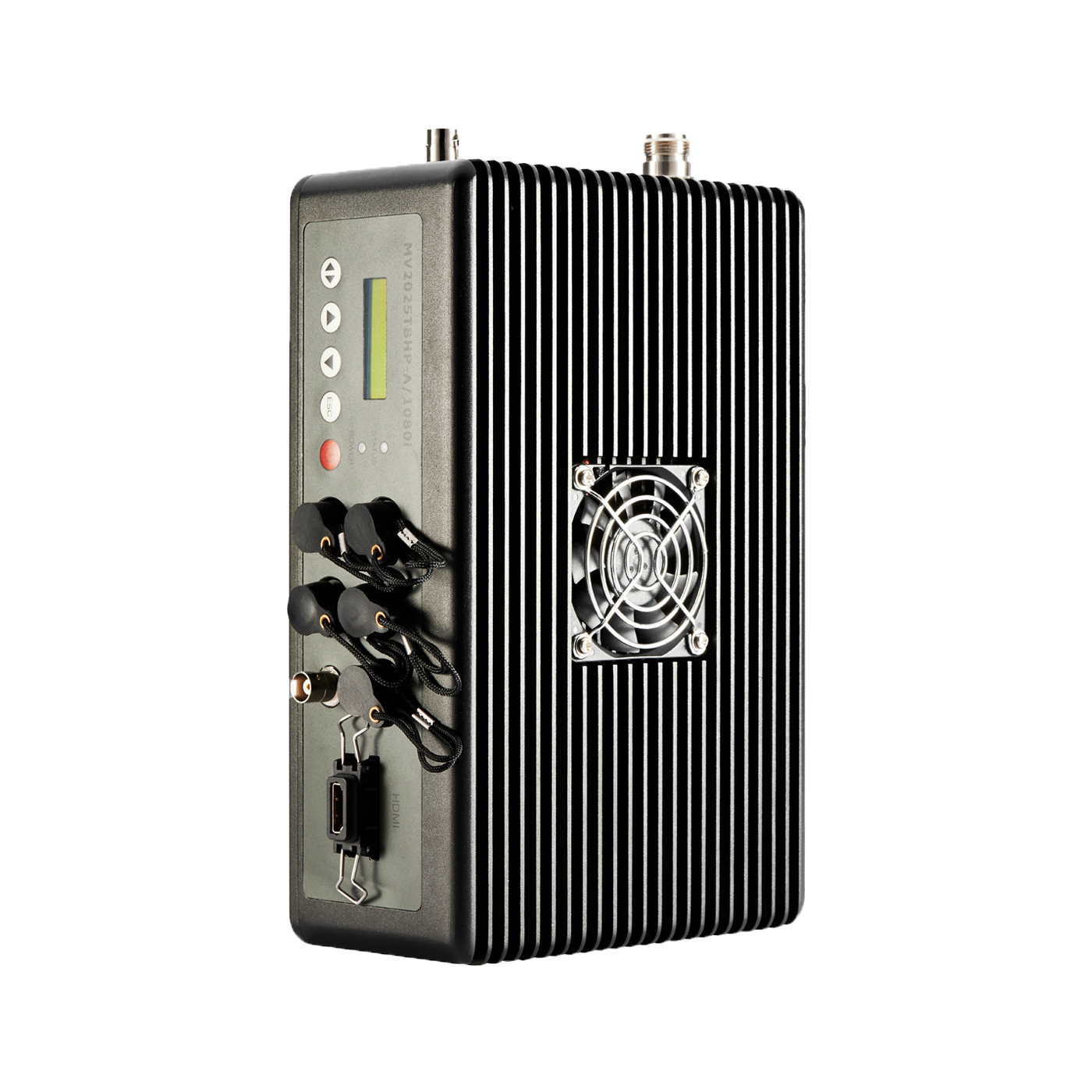

Manpacked HD two-way voice mobile video transmitter
MV2025TBMP-A/1080i
TECHNICAL SPECIFICATIONS
| Power section | Operating Voltage | DC12C~16.8V |
| Working current | ≤2.7A@DC12.5V | |
| Video emission part | Output frequency range | 3300~450MHz/560~760MHz or customized according to customer requirements |
| RF broadband | 1.5/2/3/4/6/7/8MHz (optional) | |
| Output Power | ≥33dBm@Attenuation=3 | |
| Carrier to noise ratio C/N | ≥28dB@33dBm | |
| Second harmonic | ≥52dBc | |
| Encryption | AES | |
| Modulation | COFDM | |
| Encoding support | RS232 control interface | Standard RS232 level, 9600, 8, N, 1 |
| RS232 data interface Standard | RS232 level, support 1200~115200bps | |
| Encoding support Voice receiving part |
Audio and video rate | 64,96,112,128,160,192,224,256,320,384Kbps Adjustable |
| Video encoding method | MPEG1 Layer2 | |
| Video resolution | Minimum 720×480/60i(720×576/50i ) | |
| Up to 1920×1080/60 adaptive | ||
| Video encoding method | H.264 | |
| Video rate 500kbps-16.68Mbps | adaptive | |
| Format | YCbCr4:2:0 | |
| Voice receiving part | Receiving frequency range | 470.05～479.950MHz Factory setting:479.950MHz |
| Receiving sensitivity | ≤-111dBm | |
| Frequency step | 150KHz | |
| Total decoding rate | 4800bps | |
| Audio output | 2.1Vp | |
| Appearance characteristics | Physical dimension | 220mm×145mm×50mm |
| weight | ≤1.9Kg |
EXTERNAL DIMENSION
TECHNICAL FEATURES
● Possesses broadcast-level audio and video coding quality, supports multiple audio and video input modes
● Support 1.5MHz, 2MHz, 4MHz, 6MHz, 7MHz, 8MHz bandwidth
● Support CVBS, SDI, HDMI and other interface types
● Support CVBS, SDI, HDMI and other interface types
● Aluminum alloy case, impact resistance and good heat dissipation
● Panel display working frequency and other parameters, users can adjust on-site, intuitive and easy to use
● The code rate can be automatically adjusted according to the channel bandwidth
● It has the characteristics of transmission in NLOS---NO LINE OF SIGHT motion
● The working frequency is adjustable, that is, it can be set by itself within the specified frequency range
Adjustable output power
● Adopt AES/ABS encryption technology to prevent others from receiving signals of the same frequency
● With dual voice function
● The frequency of the voice channel is adjustable, with 64 channels and 24 addresses built-in
